Name: PoE to Barrel jack or USB-C 5V 4A Gigabit Poe Splitter adapter power Supply
SKU: 64
Availability: InStock

Split POE siganl into Ethernet date (1000Mbps max) and USB-C or 5.5×2.1mm barrel port DC power (5V/4A max), Fully complies with IEEE 802.3af/at POE Switch or Injector (Required but not included), Output 20W max (5V/4A) at 802.3at and 12.5W max (5V/2.5A) at 802.3af.
It utilizes the optimal PoE module solution with isolation transformer + Standard PD (Powered Devices) chip.
Plug and play – Simply connect the ethernet and power cables, then you are ready to go. Set it up in seconds without any extra effort or configuration.

1. We must use 802.3at compliant POE+ switch or injector

2. Output 20W max (5V/4A) at 802.3at PoE switch or Injector.

3. Output 12.5W max (5V/2.5A) at 802.3af PoE switch or Injector.

Highlights:

Support 10/100/1000Mbps wired Ethernet connection.

Eliminate the need for a nearby AC outlet.

Lightning-fast Ethernet and Stable DC 5V/4A max power.

IEEE 802.3af/at compliant PoE switch or injector is required (Not included).

Utilize the optimized chip solution with the Isolation transformer and Standard PD chip.

Increased mobility for end devices, added safety (no AC power involved) and reliability.

Easy install, set it up in seconds, just plug and play.

Mode	LS-POE-0522MK
Transfer Rate	10/100/1000Mbps
Power	Input DC:44-57V, Output 5V/4A
Standard	IEEE802.3 af/at(20W)
TRNF	1/2(+),3/6(-);4/5(+),7/8(-)
Interface Type	1 Input RJ45 port, 1 output RJ45 port, 1 DC output
Standard	IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af
LED	Yellow PoE lamp
Environment	Work within -20~50°,Storage within -30~60° Work within 10%~90% Non-condensing,Storage within 5%~95% Non-condensing
Dimension	12L * 4W *7H
Weight	0.1kg

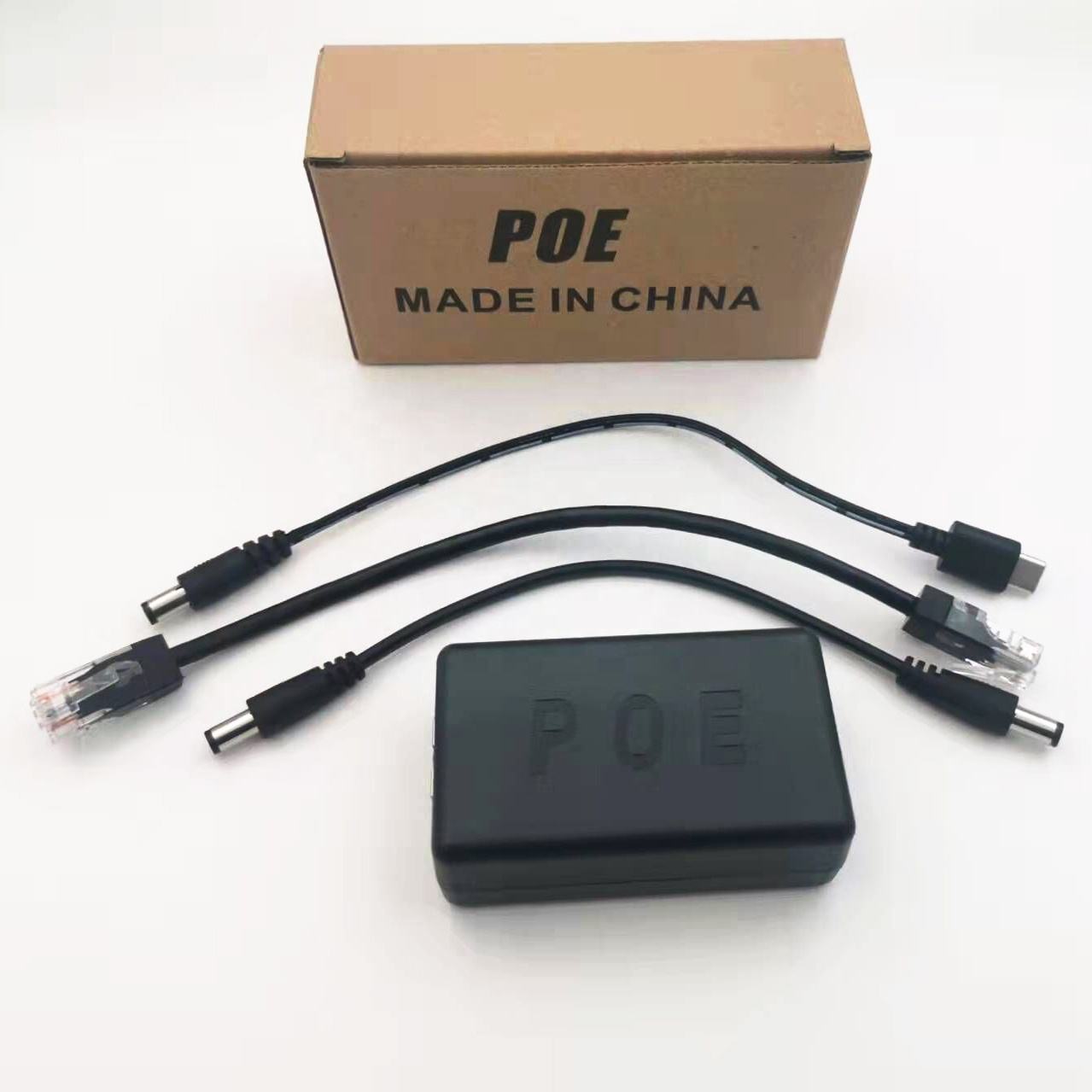

Package Included:

1 x Gigabit PoE Splitter

1 x Ethernet Cable

1 x 5.5*2.1mm Barrel Male to USB-C Male Cable

1 x 5.5*2.1mm Barrel Male to Barrel Male Cable

802.3af/at PoE to Barrel jack or USB-C 5V 4A Gigabit Poe Splitter adapter power Supply for NVIDIA Jetson Nano Raspberry Pi 4

Weight	.115 kg
Dimensions	12.5 × 6.5 × 4 cm
